Name: Omnidirectional 2D Desktop Barcode Scanner
SKU: NuScan 2800U
Price: 179.99 USD
Availability: InStock

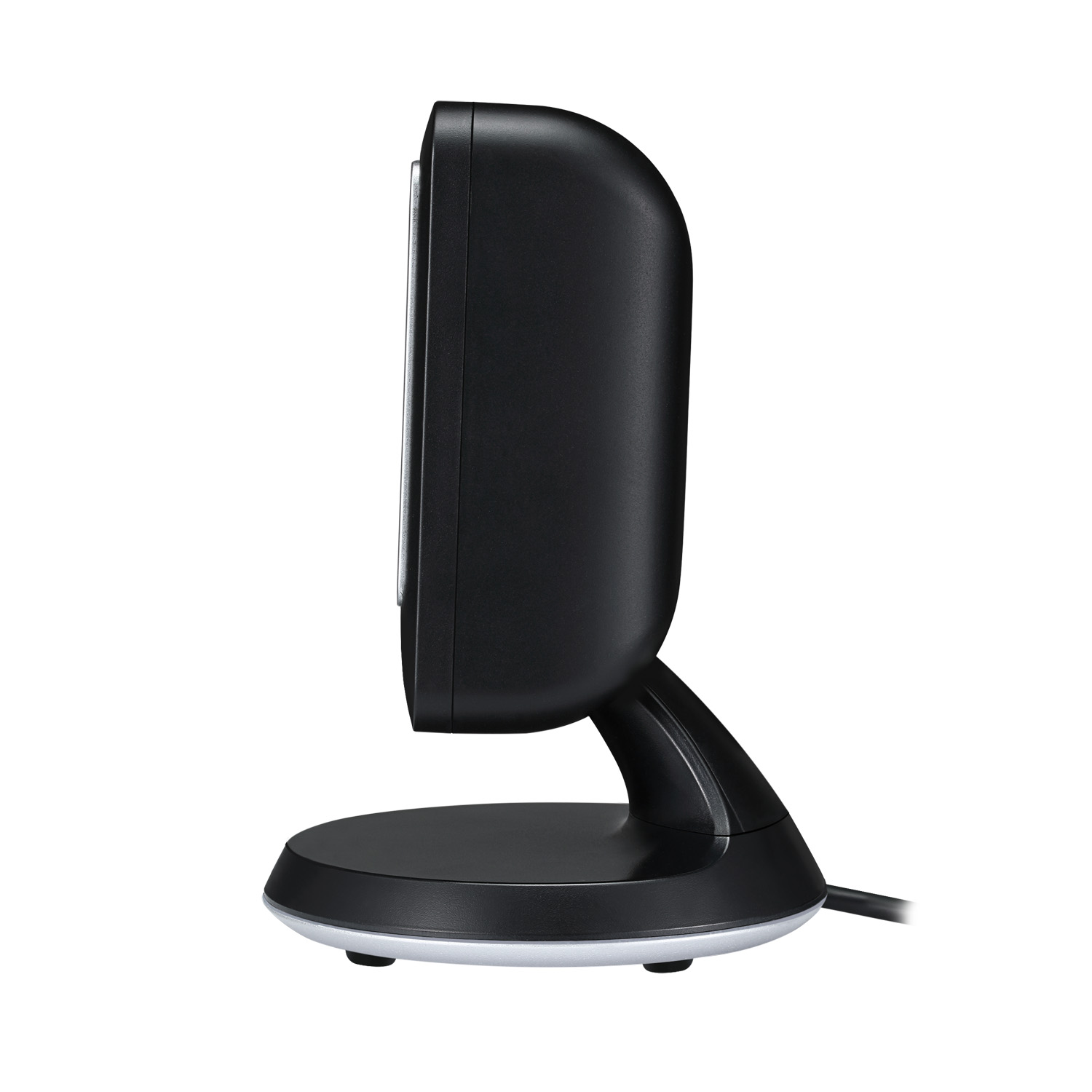

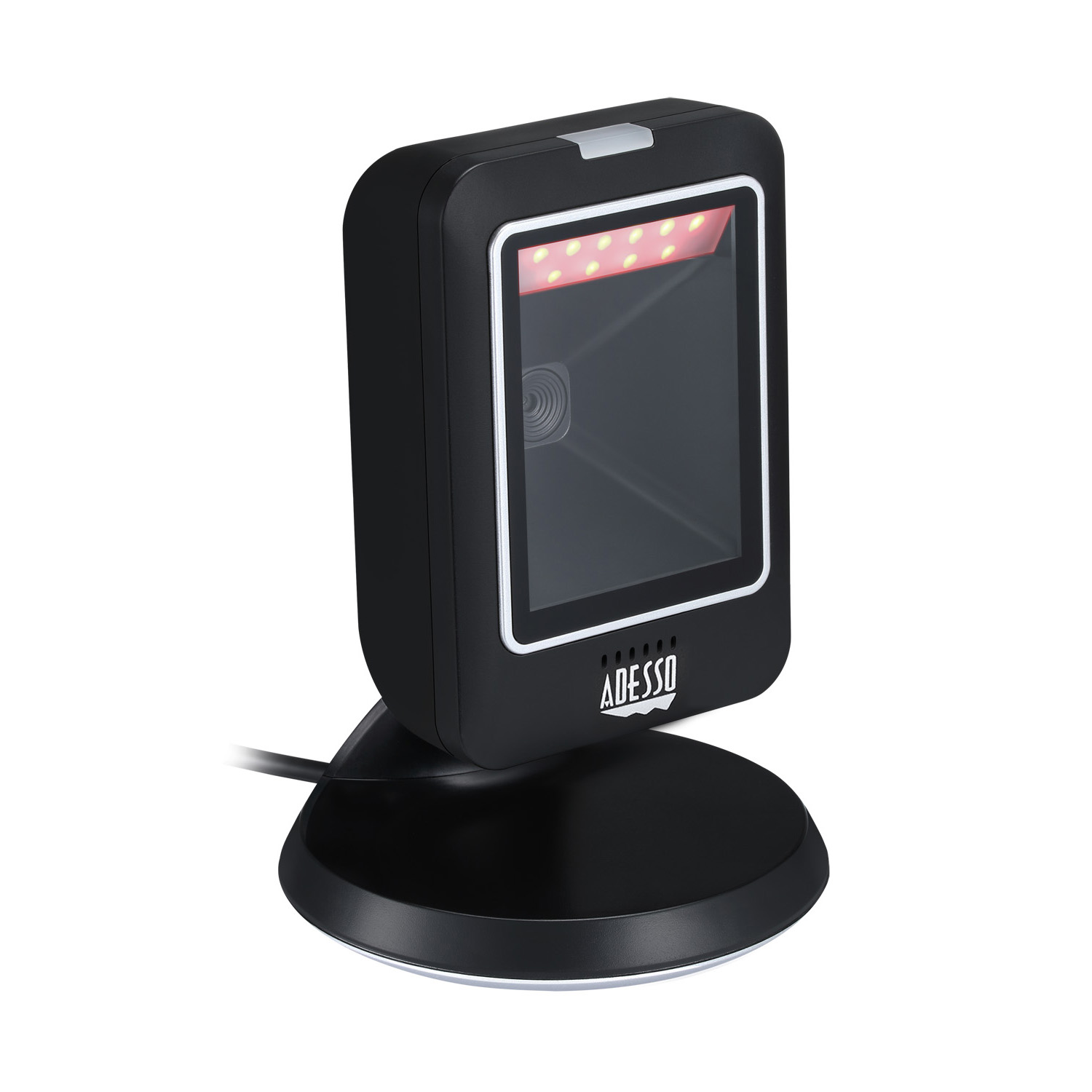

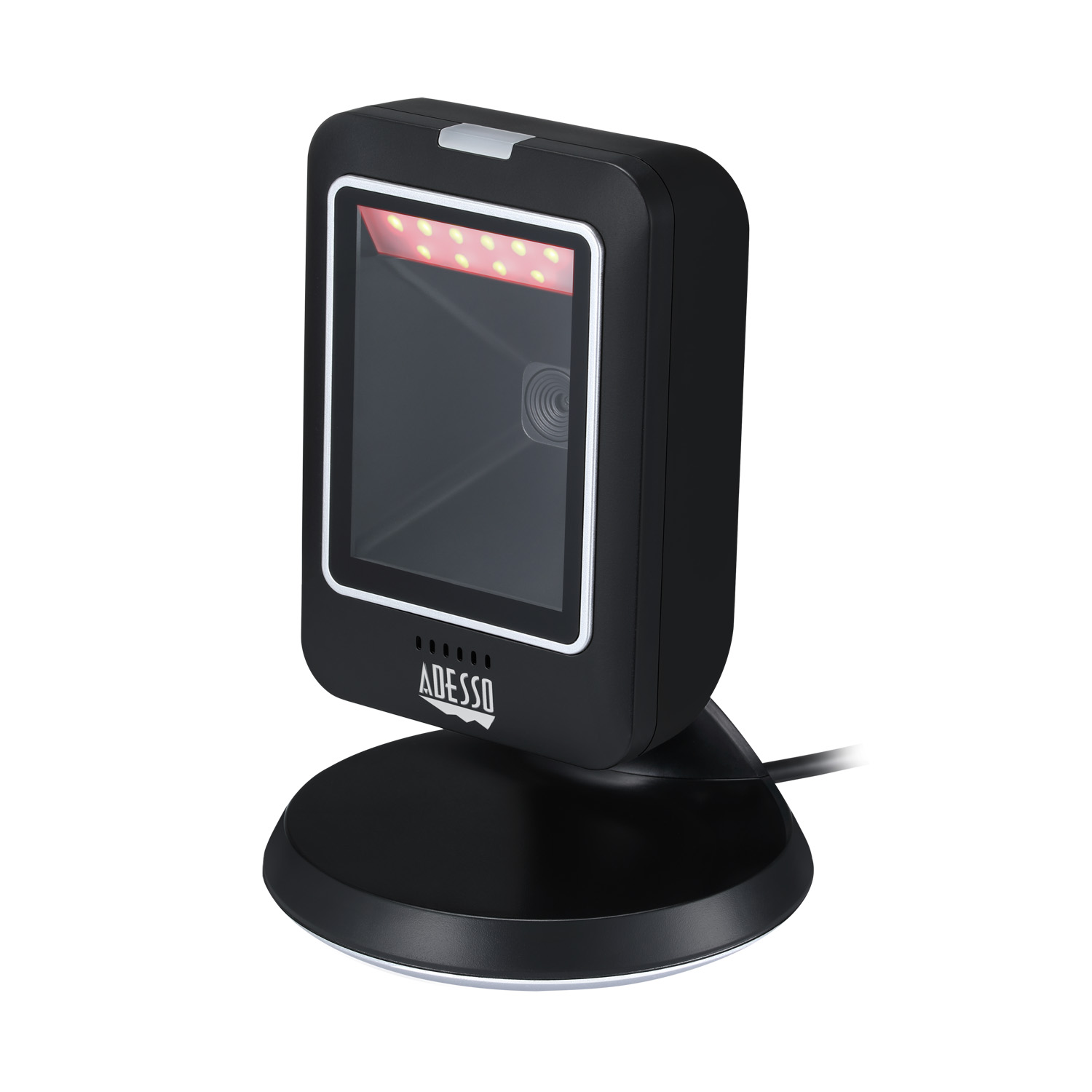

Omnidirectional 2D Desktop Barcode Scanner

$179.99

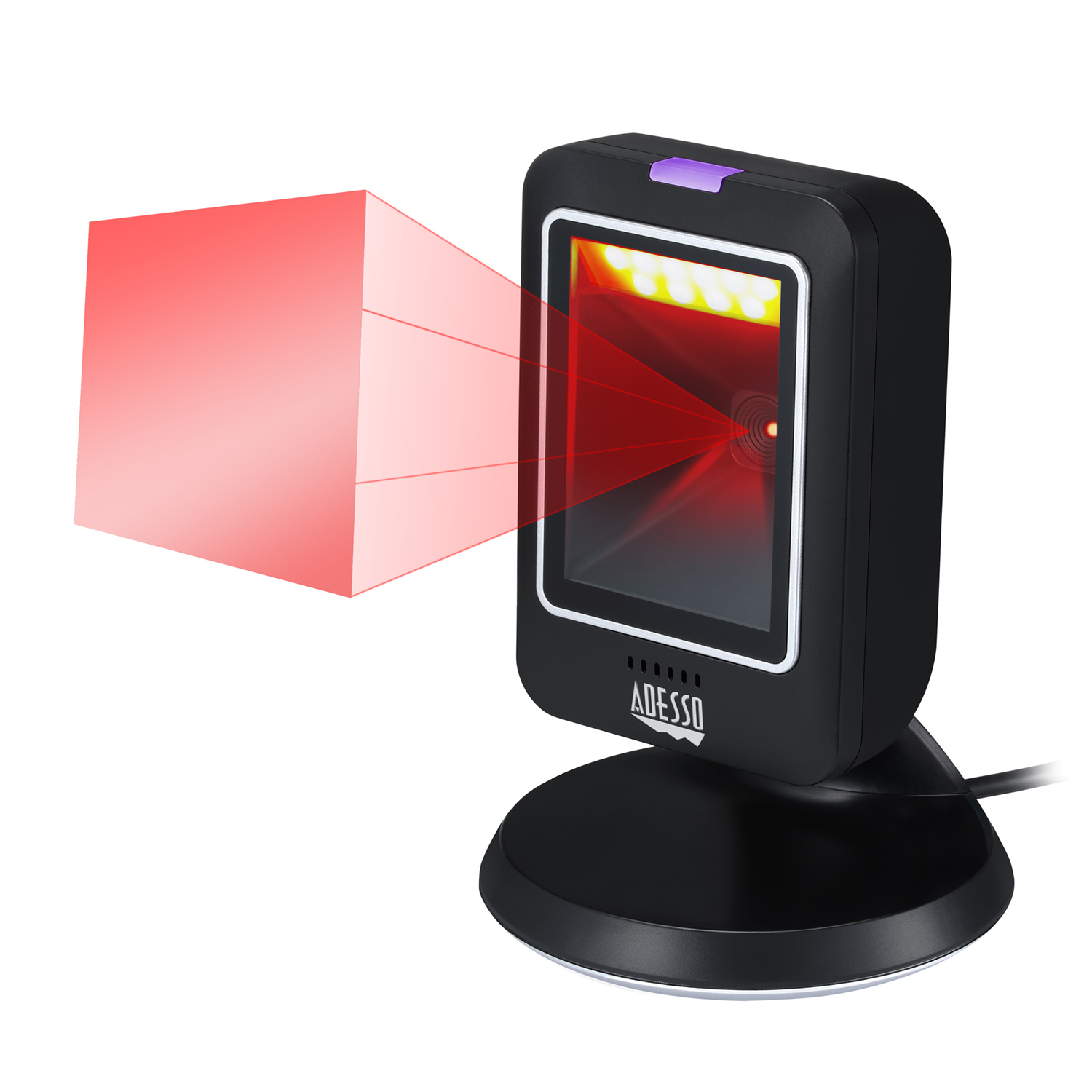

Designed primarily for P.O.S. retail environments, the Adesso NuScan 2800U is a hands-free heavy-duty desktop barcode scanner that allows you to continuously and rapidly
scan various barcodes without omissions or errors on first-pass reads. Its built-in 640 nm engine and fast 120 FPS scan rate allow you to reliably read barcodes on various
shapes and is a great space-saver for busy or limited workspaces. Its decoding engine allows it to decode both 2D barcodes, such as QR Code, PDF417, and Data Matrix, and 1D barcodes.

Features:

2D Scanning Engine

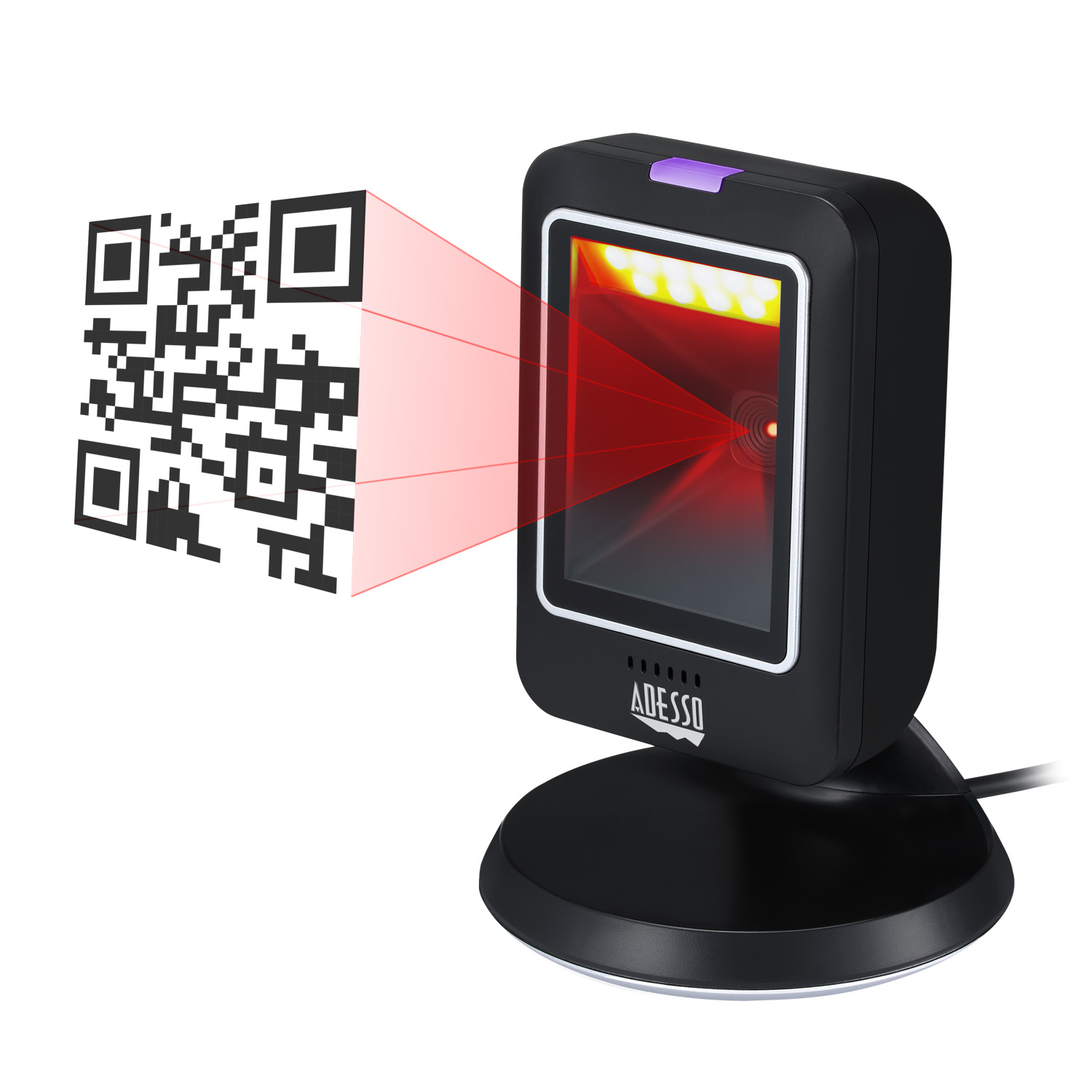

The 2D scanning engine offers decoding capability for 2D barcodes such as PDF417, Data Matrix, QR Code, MicroQR, as well as common 1D barcodes.

Spill Resistant
The scanners™ spill resistant design helps prevent internal damage due to spills.

Superior Scanning Performance
Equipped with a 640*480 CMOS sensor, the NuScan 2800U has a scan rate of 120 frames per second, offering fast and accurate scanning results.

Drop Protection
The drop-protection design prevents damage due to accidental drops of less than 1.5 meters.

Long Scanning Range
The scanner is able to scan barcodes up to a distance of 16 inches scan depth.

Product Description:

Specifications:
Operational Specifications
Picture Sensor	640*480 CMOS
Light Source	640 nm Visible red LED
Depth of Field	0-16 inches (@20mil EAN-13, PC 100%)
Scan Pattern	Automatic induction continuous scan
Scan Rate	120 FPS
Light Level	0-70000LUX
Minimum Resolution Supported	10 mm 5 mil
Print Contrast	> 20% @ UPC/EAN 100%
Indicators (LED)	Blue/ Red LED, Buzzer Alarm
Alert Operation	Programmable tone & beep time
System Interfaces	USB or Serial
Environmental Sealing	IP54
Physical Specifications
Dimensions	3.87 x 3.87 x 5.79 (98.5 x 98.5 x 147.3mm)
Weight	0.83 lbs (375 g)

Electrical Specifications
Input Voltage	5 ± 5% VDC
Operating Current	130 mA (USB) or 357mA (Serial)

Environmental Specifications
Operating Temperature	-20°C ~ 55°C
Humidity	20% ~ 95% Relative Humidity (non-condensing)

Country of Origin	Made in Taiwan
Supported Symbologies
1D Barcode	EAN-8, EAN-13, EAN-13 2 add-on, EAN-13 5add-on, ISSN, ISBN, UPC-A, UPC-E, Code11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128, GS1 Databar (RSS14), GS1 DataBar Limited, GS1 DataBar Expanded
2D Barcode	PDF417, MicroPDF417, MicroQR, Data Matrix, QR, Aztec

Model	Nuscan 1600U	Nuscan 2500CR	Nuscan 2600U	Nuscan 2700R	Nuscan 2800U	Nuscan 5200TR
Photos
Sensor	1D	1D	2D	2D	2D	2D
Connectivity	USB	2.4GHZ	USB	2.4GHZ	USB	2.4GHZ
Scan Rate	300 scans/Second	300 scans/Second	300 scans/Second	120 scans/Second	120 scans/Second	24" /Second
Weight	0.42lbs	0.38lbs	0.26lbs	0.22lbs	0.88lbs	0.35lbs
Light Source	650nm Visible red LED	650nm Visible red LED	640nm Visible red LED	640nm Visible Red LED	640nm Visible Red LED	650nm Visible Red LED
Support OS	Windows/Mac OS	Windows/Mac OS	Windows/Mac OS	Windows/Mac OS	Windows/Mac OS	Windows/Mac OS
Supported 1D Barcode Technologies	✓	✓	✓	✓	✓	✓
Supported 2D Barcode Technologies	X	✓	✓	✓	✓	✓
